Aluminum Profile CNC Drilling Milling Machine$10,000.00

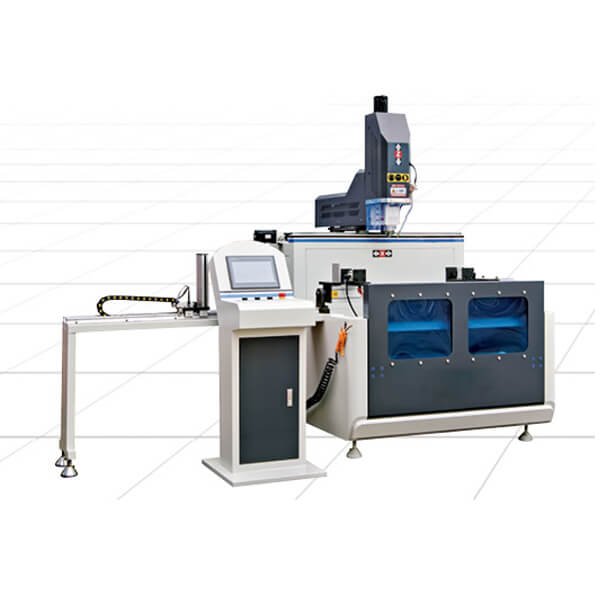

Aluminum Profile CNC Drilling Milling Machine
Model: SKZX-CNC-800
- Shipping Port: Qingdao Port / According to your request
- Payment: T/T, ACH, Fedwire, SEPA, PayPal, Credit Card
- Packing: Standard Packing
- Customized: Supported
Aluminum Profile CNC Drilling Milling Machine Description
This Aluminum Profile CNC Drilling Milling Machine is suitable for aluminum window door profiles, uPVC window door profiles, curtain wall profiles, and the other aluminium profile different grooves, and hole processing, such as round holes, water slots, lock holes, handle holes, and so on.
The Aluminium Profile CNC Drilling Milling Machine adopt an air-cooling electric main spindle, high precision, safety, and reliability.
This aluminum cnc drilling milling machine uses high precision linear guide rail, ball screw, rack, and pinion. These could ensure the movement is smooth and stable and keep the positioning and processing more accurate.
The rotary table of this CNC Drilling Milling Machine could easily change between 90°, 0°, and also -90°. This router could achieve one clamping to complete 3 surface milling.
This copy routing machine has big touch screen, easy to operate.
The Aluminum CNC Drilling Milling Machine has good interface with a simple program. Very easy to learn.
Aluminum Profile CNC Drilling Milling Machine Parameter
| Voltage | 380V/50HZ |
|---|---|
| Input power | 5KW |
| Air resource pressure | 0.5-0.8Mpa |
| X-axis travel | 800/1200mm |
| Y-axis travel | 300mm |
| Z-axis travel | 280mm |
| X-axis speed | 0-50m/min |
| Y-axis speed | 0-15m/min |
| Z-axis speed | 0-15m/min |
| Main spindle rotary | 18000r/min |
| Main spindle power | 3.5KW |
| Working table position | -90° 0° 90° |
| Processing range | 380x380x1400mm |
| Overall dimension | 1700/2200mm x 1500mm x 2000mm |
