Automatic Aluminium Corner Brace Bracket Cutting Machine$1,000.00

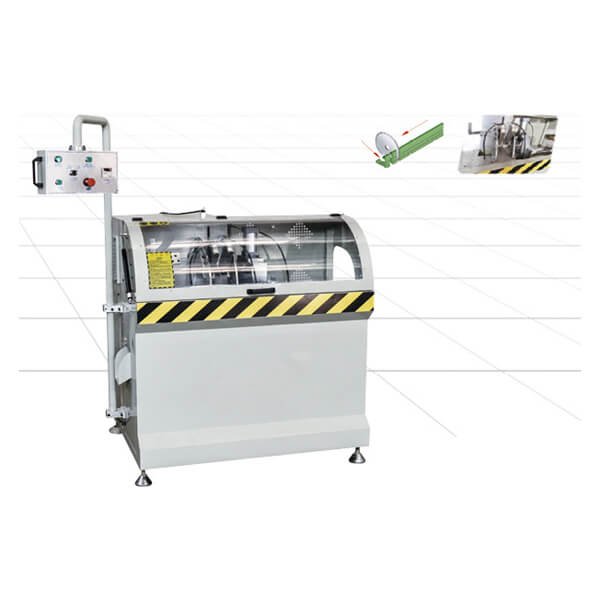

Automatic Aluminium Corner Brace Bracket Cutting Machine
Model: LJMJ-450
- Shipping Port: Qingdao Port / According to your request
- Payment: T/T, ACH, Fedwire, SEPA, PayPal, Credit Card
- Packing: Standard Packing
- Customized: Supported
Automatic Aluminium Corner Brace Bracket Cutting Machine Description
This Automatic Aluminium Corner Brace Bracket Cutting Machine is suitable for aluminum profile, and the other light metal profile corner brace bracket, connector small length 90° cutting.
The cutting machine use PLC control. stable with efficiency. suitable for bulk production.
Automatic counting system, easy to set the cutting quantity.
This Automatic Aluminium Corner Brace Bracket Cutting Machine uses an good quality saw blade, high precision, and also high durability.
Automatic Aluminium Corner Brace Bracket Cutting Machine Parameter
| Voltage | 380V/50HZ |
|---|---|
| Input power | 2.75KW |
| Air resource pressure | 0.5-0.8Mpa |
| Air consumption | 120L/min |
| Motor rotary speed | 2800r/min |
| Blade feeding speed | 0-3m/min |
| Profile auto feeding length | 3-400mm |
| Cutting height | 180mm |
| Blade specification | φ450mm |
| Overall dimension | 5200mm x 950mm x1300mm |
