Heavy Duty Aluminum Profile Single Head Mitre Saw Cutting Machine$2,000.00

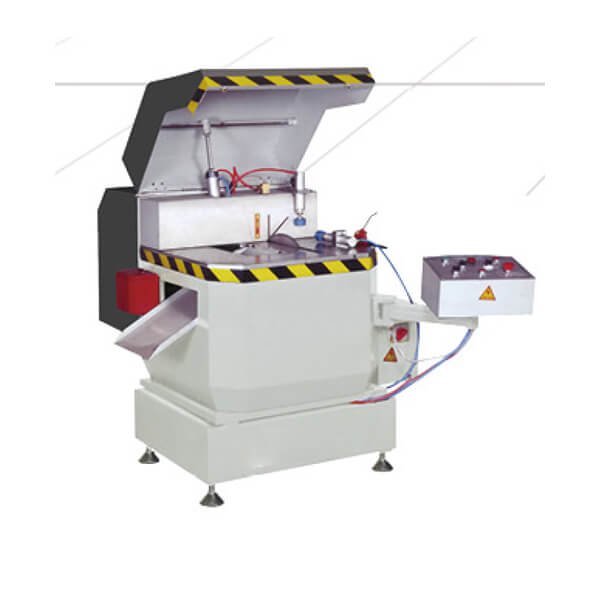

Heavy Duty Aluminum Profile Single Head Mitre Saw Cutting Machine
Model: LJZD-500
- Shipping Port: Qingdao Port / According to your request
- Payment: T/T, ACH, Fedwire, SEPA, PayPal, Credit Card
- Packing: Standard Packing
- Customized: Supported
Heavy Duty Aluminum Profile Single Head Mitre Saw Cutting Machine Description
This Heavy Duty Aluminum Profile Single Head Mitre Saw Cutting Machine is suitable for aluminum profile, curtain wall profile cutting with high efficiency.
The saw blade feeding system also adopts an imported linear guide rail with high precision and good stability.
Gas-liquid damping cylinder to ensure feed speed uniformly and also smoothly.
Automatic protective cover.
Support customized.
Heavy Duty Aluminum Profile Single Head Mitre Saw Cutting Machine Parameter
| Voltage | 380V/50HZ |
|---|---|
| Input power | 3.25KW |
| Air resource pressure | 0.5-0.8Mpa |
| Air consumption | 150L/min |
| Blade specification | φ500mm |
| Cutting profile width | Max. 300mm |
| Cutting profile height | Max. 180mm |
| Overall dimension | 1700mm x 1200mm x 1600mm |
