uPVC Window Double Head Automatic Screw Fastening Machine$2,000.00
uPVC Window Double Head Automatic Screw Fastening Machine
Model: SZG2
- Shipping Port: Qingdao Port / According to your request
- Payment: T/T, ACH, Fedwire, SEPA, PayPal, Credit Card
- Packing: Standard Packing
- Customized: Supported
uPVC Window Double Head Automatic Screw Fastening Machine Description

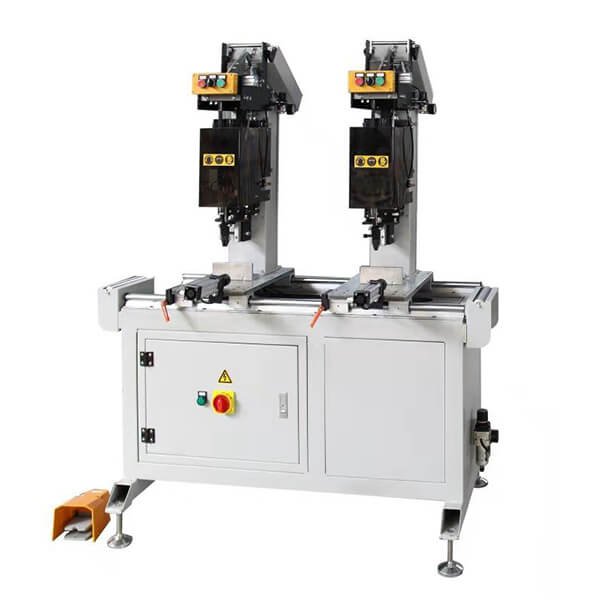

The uPVC Window Double Head Automatic Screw Fastening Machine mainly used for the upvc window door profile and reinforcement steel fasten.
This screw fasten machine integrated screw feeding system with 2 heads.
The Two Head uPVC window automatic screw fastening machine adopts a manual operation foot panel and is very easy to operate.
This screwdriver machine can work 30 – 80 screws per minute depending on the dimension of the screw.
uPVC Window Double Head Automatic Screw Fastening Machine Parameter
| Voltage | 220V/50HZ |
|---|---|
| Input power | 1KW |
| Air resource pressure | 0.6-0.8Mpa |
| Screw specification |  φ3-φ5x (13-26)mm |
| Profile length | 300-3000mm |
| Profile width | Max. 120mm |
| Profile height | 25-120mm |
| Screwdriver | 6.35 x 110mm |
| Distance between two screw | 250-600mm |
| Error | 2-5%(depend on the screw quality) |
| Reinforcement steel thickness | 1.0-2.0mm |
| Overall dimension | 2800mm x 580mm x1850mm |
