uPVC Window Profile Double Head Saw Cutting Machine$2,000.00

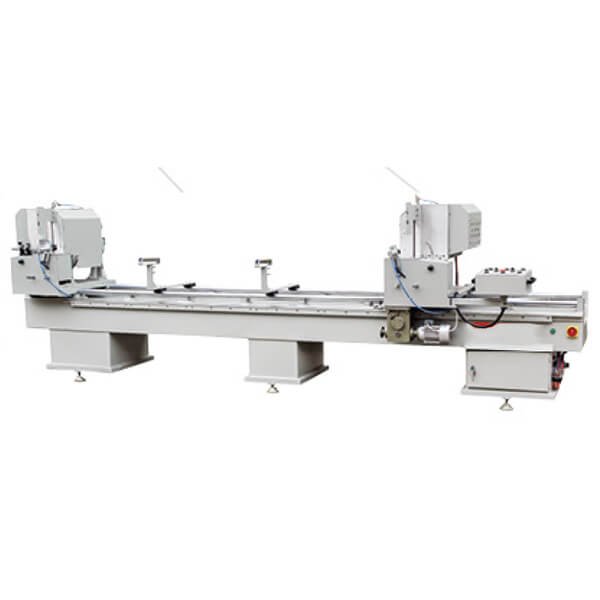

uPVC Window Profile Double Head Saw Cutting Machine
Model: SJ06-3700
- Shipping Port: Qingdao Port / According to your request
- Payment: T/T, ACH, Fedwire, SEPA, PayPal, Credit Card
- Packing: Standard Packing
- Customized: Supported
uPVC Window Profile Double Head Saw Cutting Machine Description
uPVC Window Profile Double Head Saw Cutting Machine is suitable for uPVC window door profile cutting with high efficiency.
This Double head Saw could cut ±45 and also 90 degrees.
The right head of the cutting machine move through motor control.
And we could also fine-tune manually.
The gas-liquid damping cylinder makes the feeding velocity uniformly. Running smoothly.
uPVC Window Profile Double Head Saw Cutting Machine Parameter
| Voltage | 380V/50HZ |
|---|---|
| Input power | 4.3KW |
| Air resource pressure | 0.5-0.8Mpa |
| Blade specification | φ450mm |
| Cutting profile length | 360-3700mm |
| Cutting profile width | Max. 120mm |
| Cutting profile height | Max. 150mm |
| Air Consumption | 200L/min |
| Cutting angle | ±45° 90° |
| 聽Overall dimension | 4700mm x 1300mm x1450mm |
