uPVC Window Reinforcement Steel Screw Fasten Machine$1,000.00

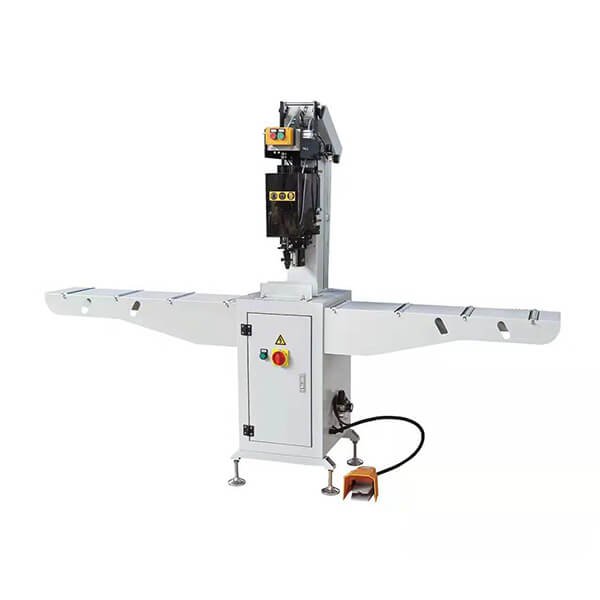

uPVC Window Reinforcement Steel Screw Fasten Machine
Model: SZG1
- Shipping Port: Qingdao Port / According to your request
- Payment: T/T, ACH, Fedwire, SEPA, PayPal, Credit Card
- Packing: Standard Packing
- Customized: Supported
uPVC Window Reinforcement Steel Screw Fasten Machine Description
uPVC Window Reinforcement Steel Screw Fasten Machine is mainly used for reinforcement steel and uPVC window door profile fasten.
This screw fastening machine integrated screw feeding system with one head.
This screwdriver adopts a manual operation foot panel and is also very easy to operate.
This machine can work 30 – 80 screws per minute depending on the dimension of the screw.
uPVC Window Reinforcement Steel Screw Fasten Machine Parameter
| Voltage | 220V/50HZ |
|---|---|
| Input power | 0.5KW |
| Air resource pressure | 0.6-0.8Mpa |
| Screw specification |  φ3~ φ5 x (13-26)mm |
| Profile length | 300-3000mm |
| Profile width | Max. 120mm |
| Profile height | 25-100mm |
| Screwdriver | 6.35 x 110mm |
| Distance between two screw | 250-600mm |
| Error | 2-5%(depend on the screw quality) |
| Reinforcement steel thickness | 1.0-2.0mm |
| Overall dimension | 2850mm x 480mm x1850mm |
